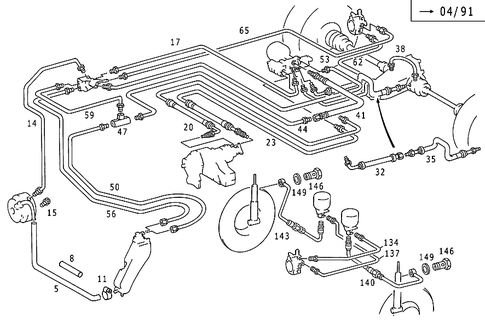

4MATIC® Line Arrangement, with Self-Levelling Device for 1992 Mercedes-Benz 300E
No.
Part # / Description / Price
Price
8
MSRP $3.90
$3.02
11
Clamp
Mercedes-Benz
Mercedes-Benz Description: FROM STEERING GEAR ON COOLING LINEInside diameter: 17mmMaterial thickness: 0,6mmWidth across flats: SW7Model 1: W1. CONNECTORInside diameter: 17mmMaterial thickness: 0,6mmWidth across flats: SW7Model 1: W1. FROM OIL PUMP TO HEIGHT CONTROL VALVEInside diame ...
MSRP $5.50
$4.12
MSRP $5.50
$4.12
14
Line Mercedes-Benz
Mercedes-Benz Description: (return line) from coupling piece to oil reservoir. From high pressure expansion hose to coupling piece. From high pressure expansion hose to control valve. From pump to service valve. (return line) from distributor to distributor. From master cylinder,connection "h",to hydraulic unit,connection: "h",teves. High-pressure line to connection fitting. From distributor to oil tank.
MSRP $64.00
$48.64
MSRP $64.00
$48.64
15
Retaining Screw Mercedes-Benz
Mercedes-Benz Description: M12x1. Line connection. Brake line. Hydraulic line. Lines m 12x1. Dia., 6,3 . M 12. 620mm. From brake master cylinder to hydraulic unit.
MSRP $0.90
$0.66
MSRP $0.90
$0.66
17
Line Mercedes-Benz
Mercedes-Benz Description: (return line),from self-levelling unit to coupling piece.
MSRP $109.00
$81.90
MSRP $109.00
$81.90
32
MSRP $115.00
$86.94
35
Pressure Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From control valve to ring cylinder.
50
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: (return line) from coupling piece to oil reservoir. (return line) from t-fitting to oil reservoir.
53
Line Mercedes-Benz
Mercedes-Benz Description: From coupler to distributor. 4.75 x 0.7 x 3090 mm. From adapter fitting to brake hose, rear right. 4.75 x 0.7 x 3090 mm. Separation point to right rear wheel. 4.75 x 0.7 x 3090 mm.
MSRP $89.00
$66.78
MSRP $89.00
$66.78
56
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Connection "t0", from service valve to oil reservoir. Connection "n", from control valve to oil reservoir. From distributor,connection "ph",to rear height control valve. From high pressure expansion hose to a s d control valve.
MSRP $58.00
$44.16
MSRP $58.00
$44.16
68
Line Mercedes-Benz
Mercedes-Benz Description: From high pressure expansion hose to control valve. (return line),connection "t1", from service valve to t-fitting.
119
Connection Piece Mercedes-Benz
Mercedes-Benz Description: M12. To separation point. Line connection. Lines. Pressure line. From high pressure expansion hose to distributor valve.
MSRP $11.50
$8.97
MSRP $11.50
$8.97
134
Brake Line Mercedes-Benz
Mercedes-Benz Description: Between master cylinder,front axle and bracket,frame 1042 mm. From hydraulic unit to right front wheel. Red 1040 mm. From hydraulic unit to adapter fitting,rear right. From distributor to coupling. From rear master cylinder to hydraulic unit,connection: "v".
137
Line Mercedes-Benz
Mercedes-Benz Description: From adapter fitting to accumulator, connection: "e". 4.75x0.7x230 mm.
143
149
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: CONNECTING HOSE TO HYDROPNEUMATIC SPRING LEGStrength / hardness class: CUInside diameter: 12mmOutside diameter: 16mmMaterial thickness: 1,5mm. 7 speed auto. SRREW PLUGStrength / hardness class: CUInside diameter: 12mmOutside diameter: 16mmMaterial thicknes ...
MSRP $4.80
$3.72
MSRP $4.80
$3.72
